| Gondola - Silver Mountain |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Lift Stats: |
| Manufacturer: | Von Roll |
| Type: | Gondola (8 person) |
| Installed: | 1990 |

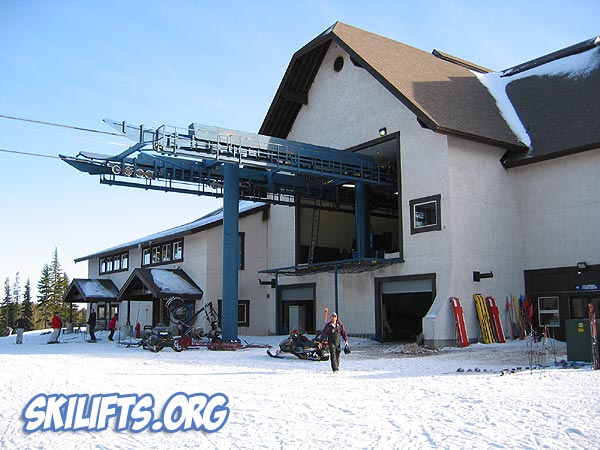

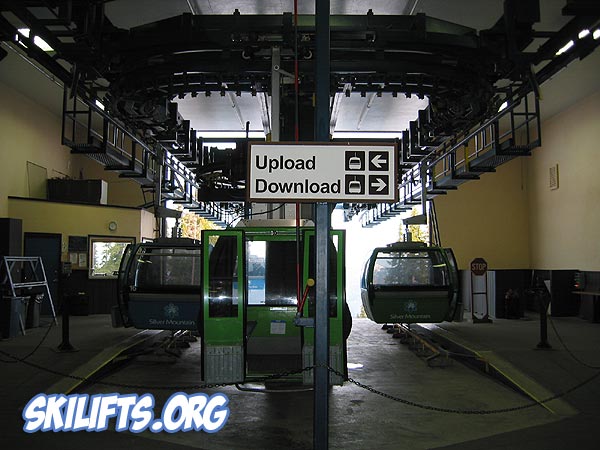

| Drive: | At top station |

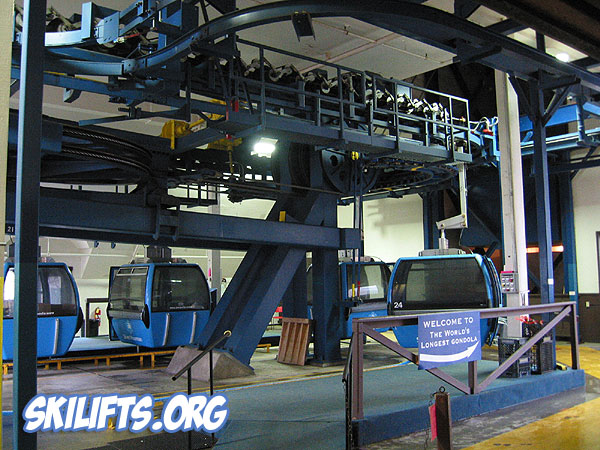

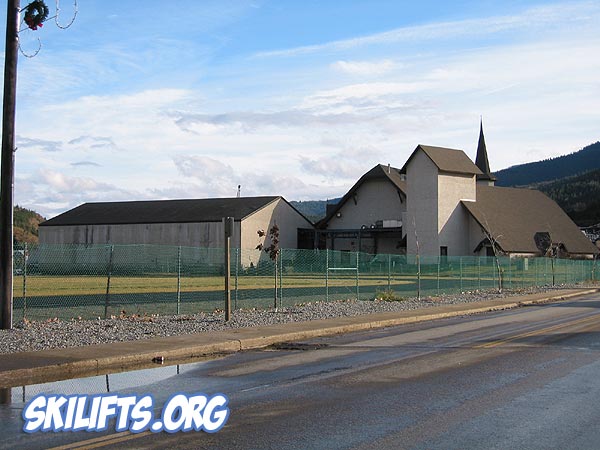

| Tensioning: | At bottom station |
| Motor: | 1,500 HP |
| Motor rating, continuous: | 1,140 kW |
| Motor rating, starting: | N/A kW |
| Haul rope diameter: | 55 mm |
| Rope guage: | 5.2 m |
| Vertical rise: | 3,377 ft / 1,029.3 m |
| Inclined length: | 16,350 ft / 4,983.4 m |
| Speed on line: |
1,000 fpm / 5.08 m/s |
| Speed in station: | N/A fpm / N/A m/s |

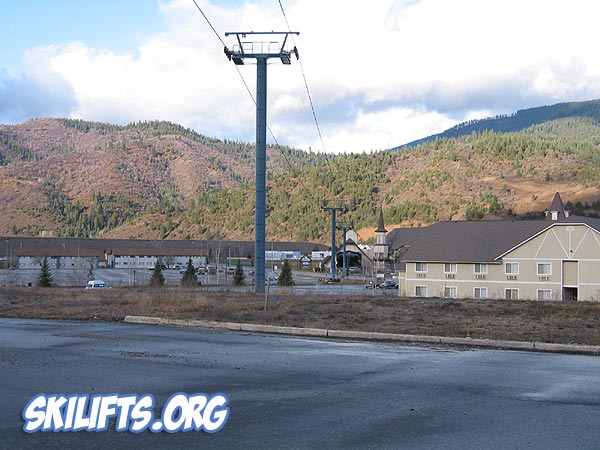

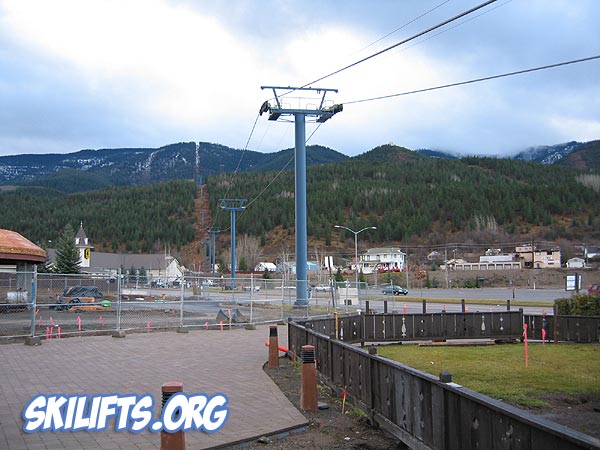

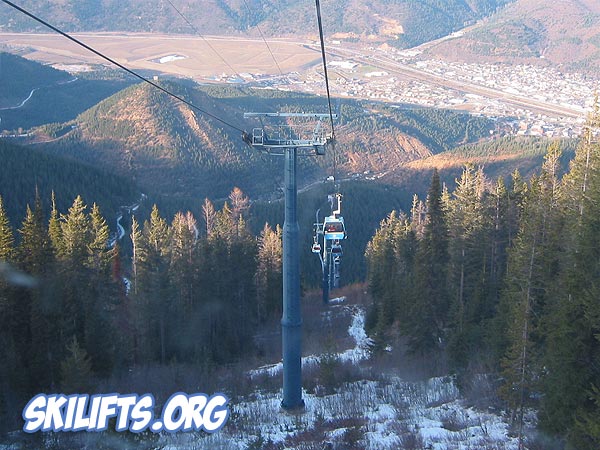

| Number of towers: | 45 |
| Number of cabins: | 110 pcs. |
| Capacity: | 1,600 P/h |
| Ride time: | N/A minutes |

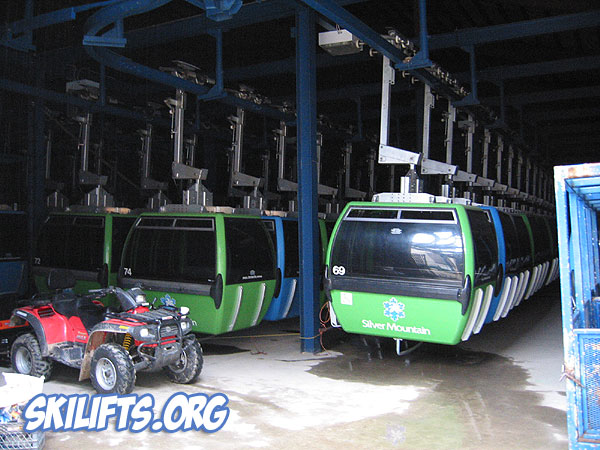

| Cabin parking: |
At bottom station |
| Other notes: |
It cost $22 million to build, $150 an hour to run and is the World's longest single stage gondola. It takes 17 minutes to reach the top. |
