| Manufacturer:
|
Leitner |
| Type:
|
High-speed quad |
| Installed:
|
1999 |

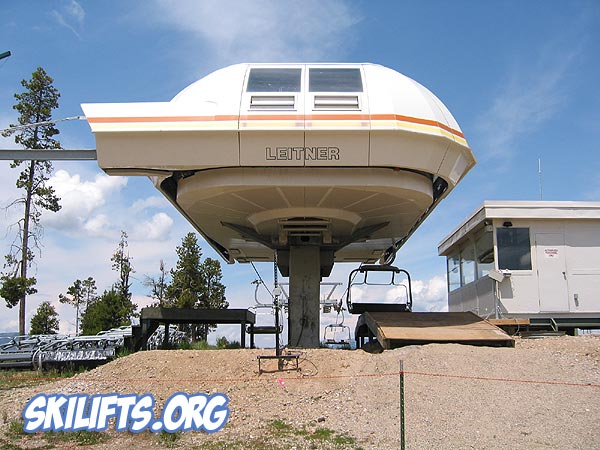

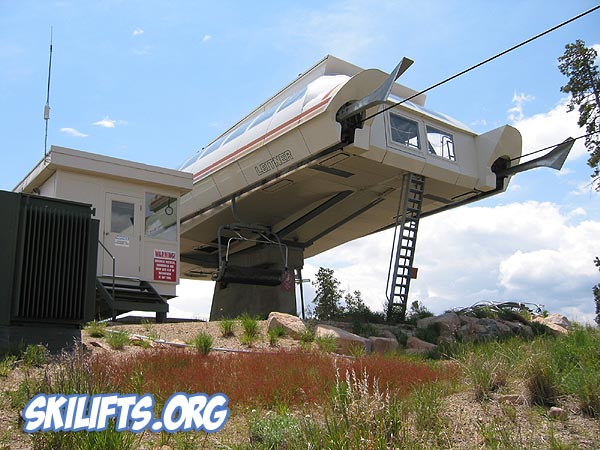

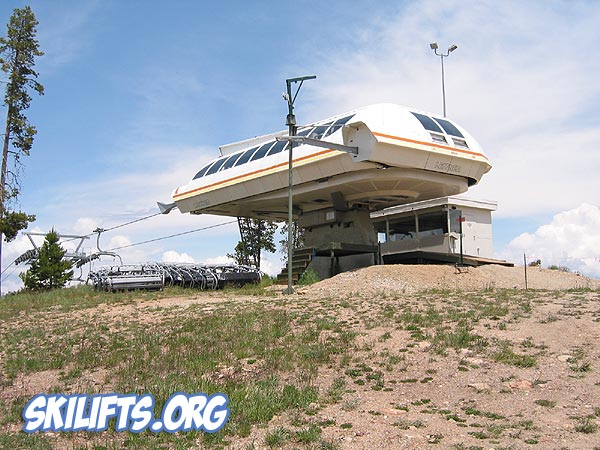

| Drive:
|
In top station |

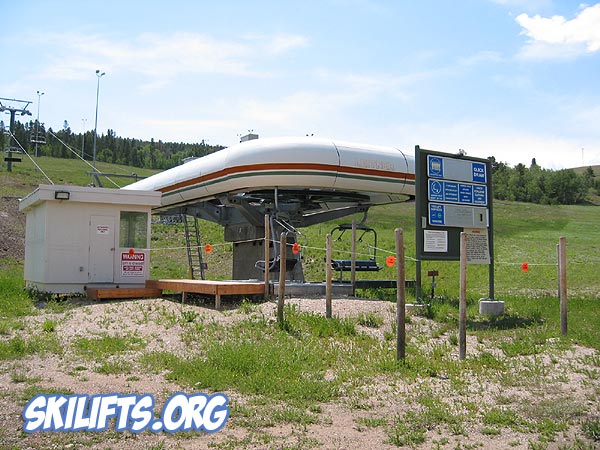

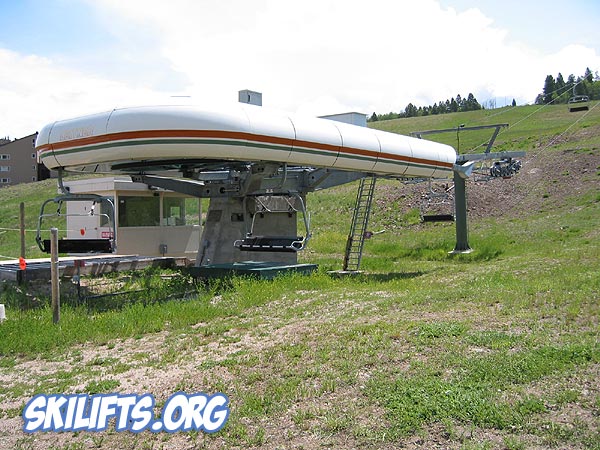

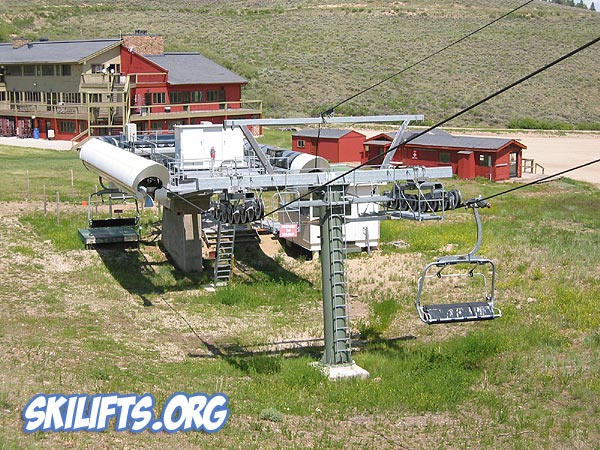

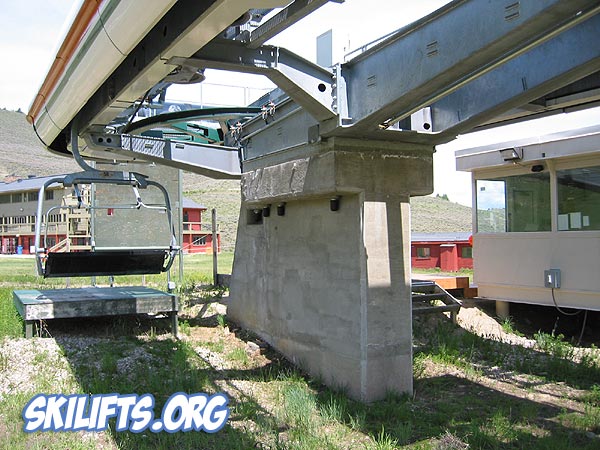

| Tensioning: |
In bottom station |
| Motor: |
500 HP |
| Motor rating, continuous: |
N/A kW |
| Motor rating, starting:
|
N/A kW |
| Haul rope diameter:
|
N/A mm |
| Rope guage: |
4.8 m |
| Vertical rise: |
256 m |
| Inclined length:
|
1,329 m |
| Speed on line:
|
5.6 m/s |
| Speed in station: |
1 m/s |

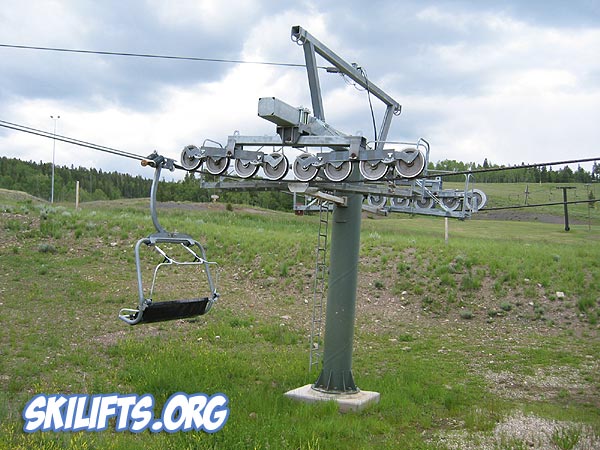

| Number of towers:
|
14 |
| Number of chairs:
|
N/A |
| Capacity: |
2,400 P/h |
| Ride Time: |
N/A minutes |
| Chair parking:
|
Manual emergency rail at top station |
| Other notes:
|
This lift's former name was 'Quicksilver' and
later changed to 'Quick Draw' to go with SolVista's western theme. |
