| Silver Queen - Aspen Mountain |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Lift Stats: |
| Manufacturer: | POMA |
| Type: | 6 person gondola |
| Installed: | 1986 |

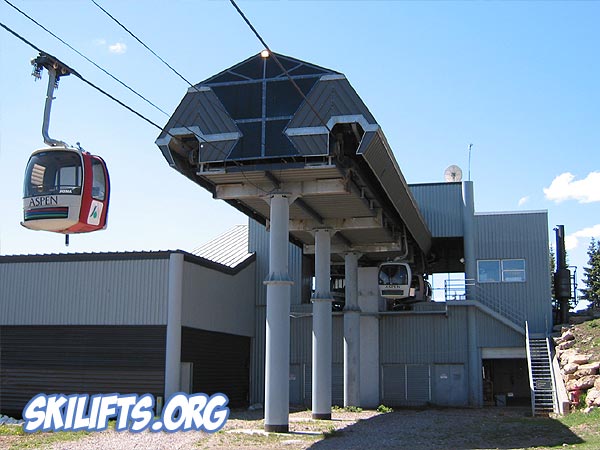

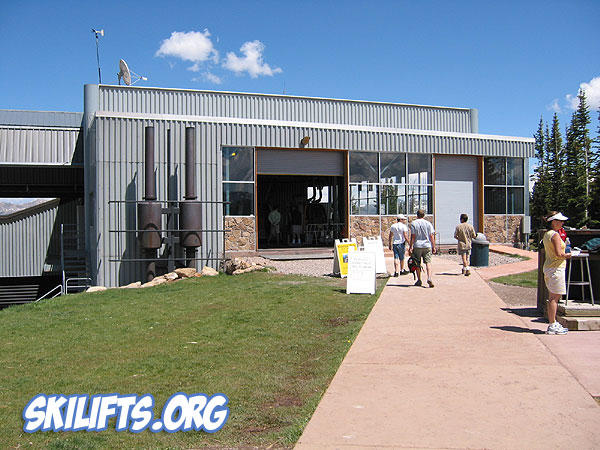

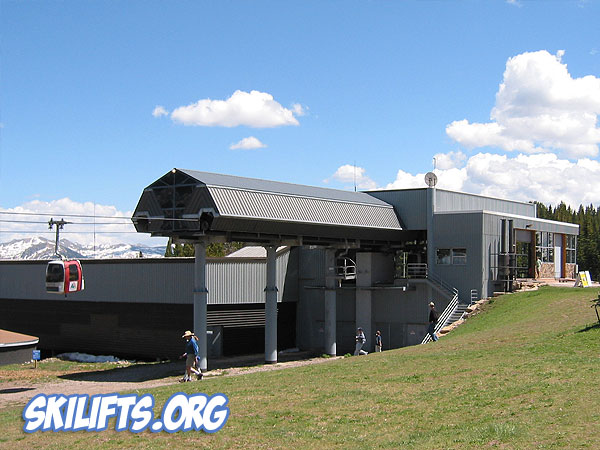

| Drive: | In top station |

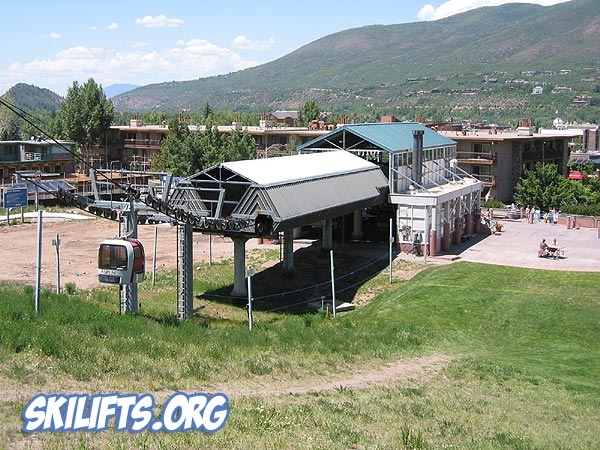

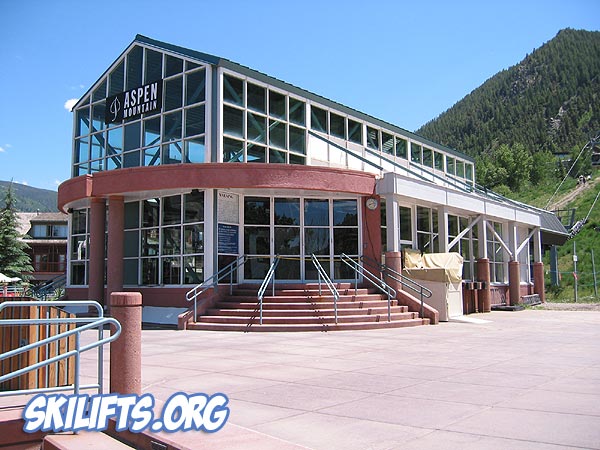

| Tensioning: | In bottom station |
| Motor: | N/A HP |
| Motor rating, continuous: | N/A kW |
| Motor rating, starting: | N/A kW |
| Haul rope diameter: | N/A mm |
| Rope guage: | N/A m |
| Vertical rise: | 994.8 m |
| Inclined length: | 4,028.2 m |
| Speed on line: |
5.6 m/s |
| Speed in station: | N/A m/s |
| Number of towers: | 35 |
| Number of cabins: | N/A |
| Capacity: | 2,400 P/h |
| Ride time: | 14 minutes |
| Cabin parking: |
At the top station |
| Other notes: |

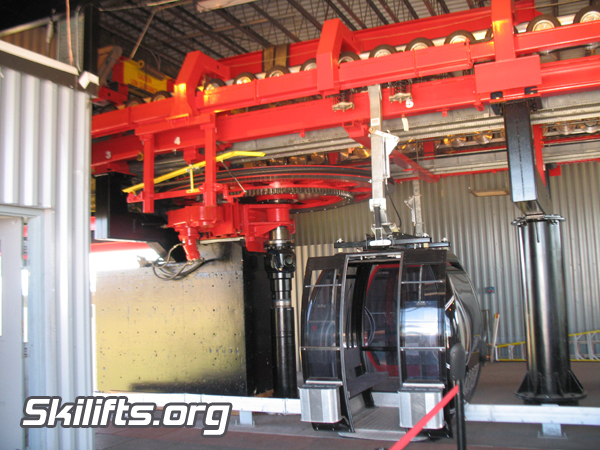

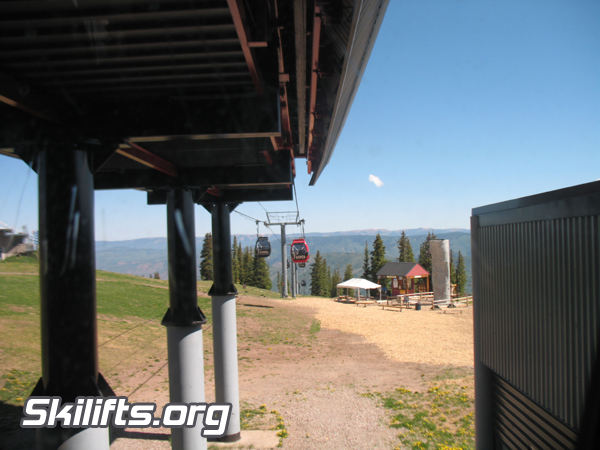

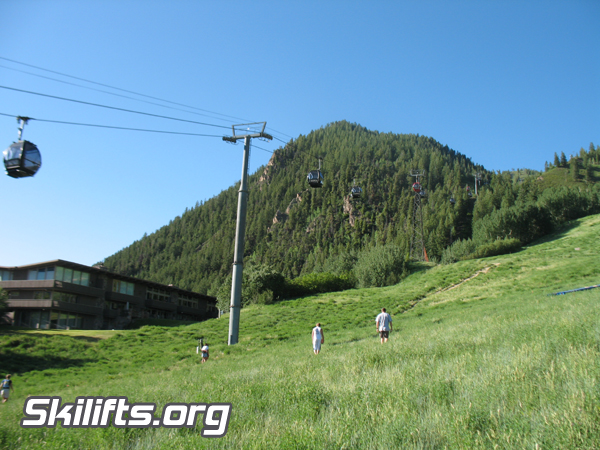

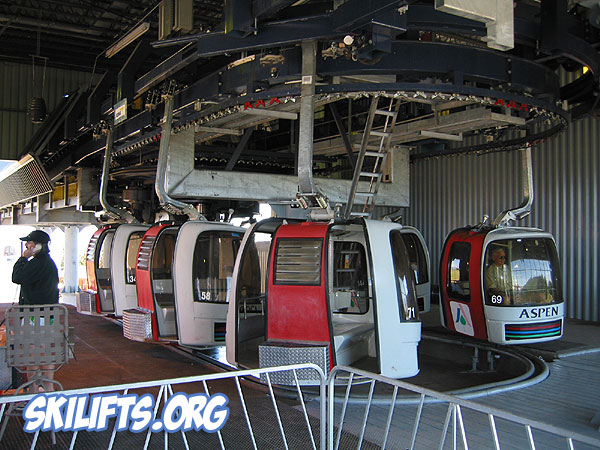

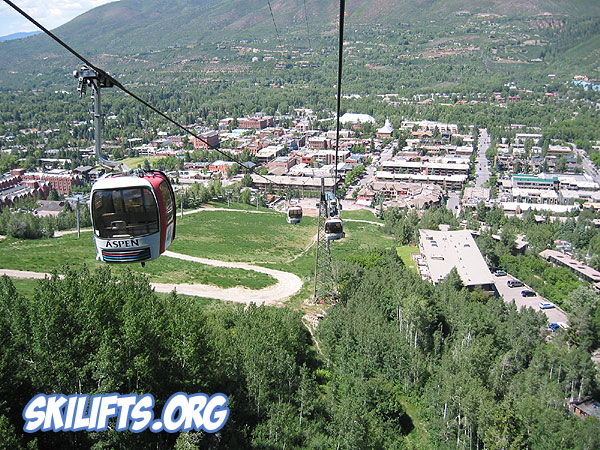

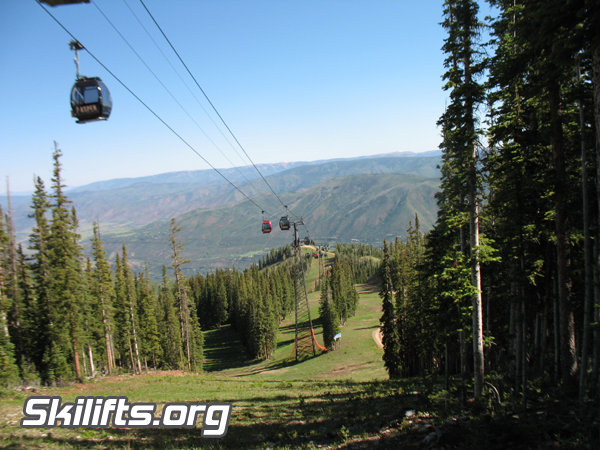

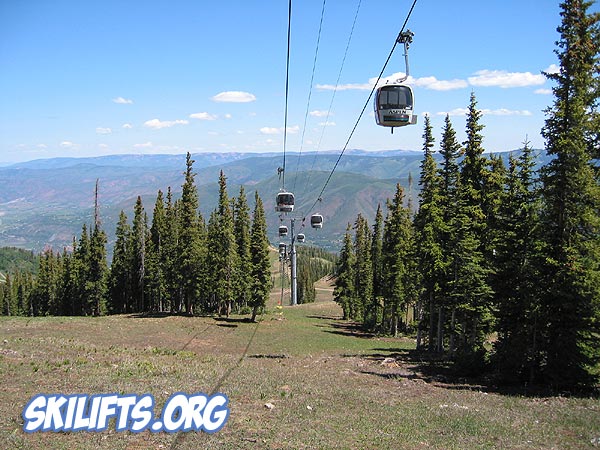

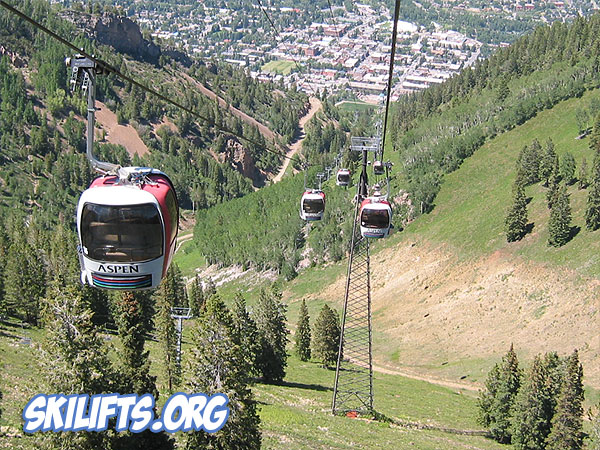

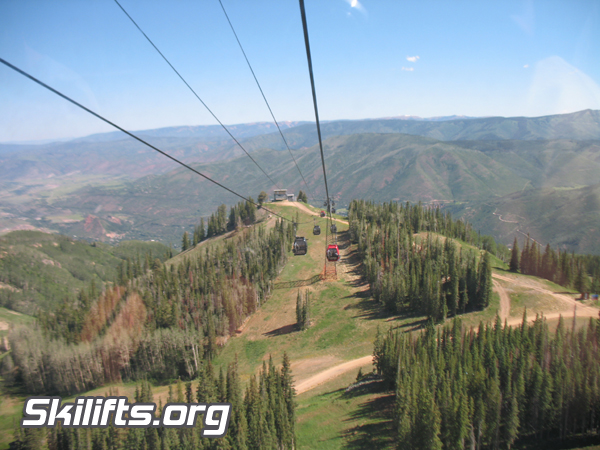

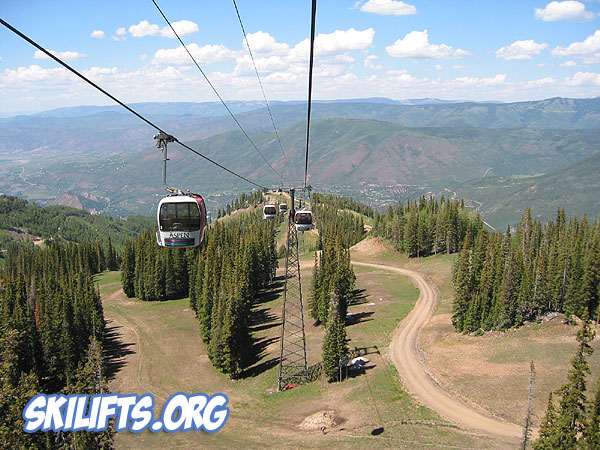

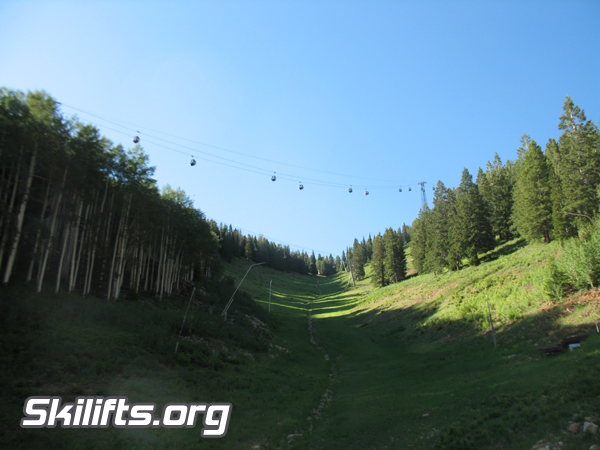

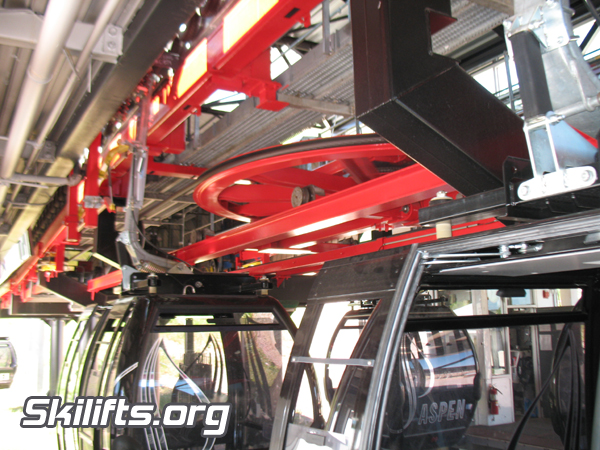

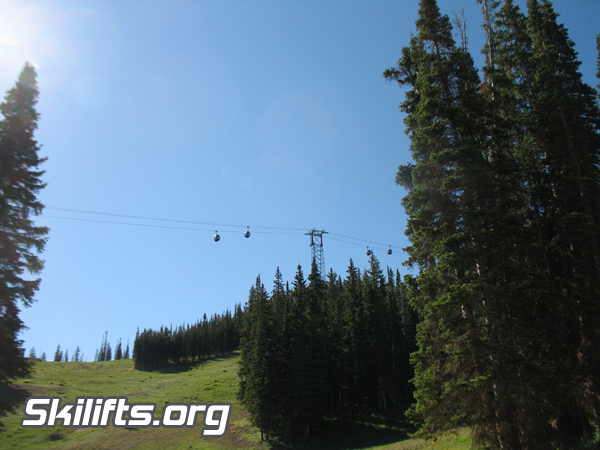

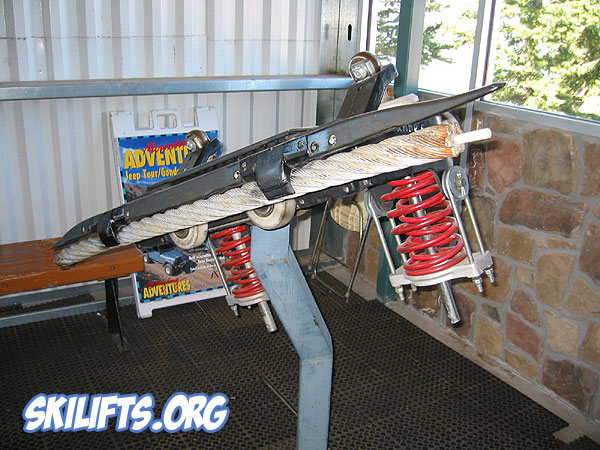

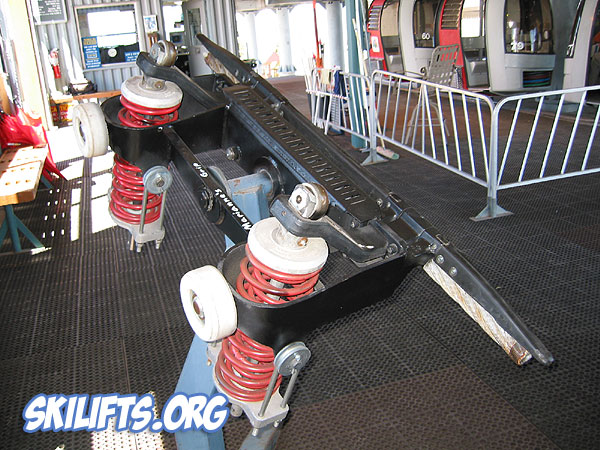

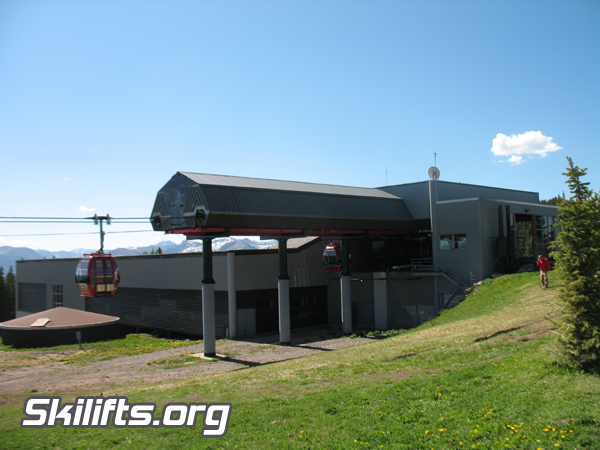

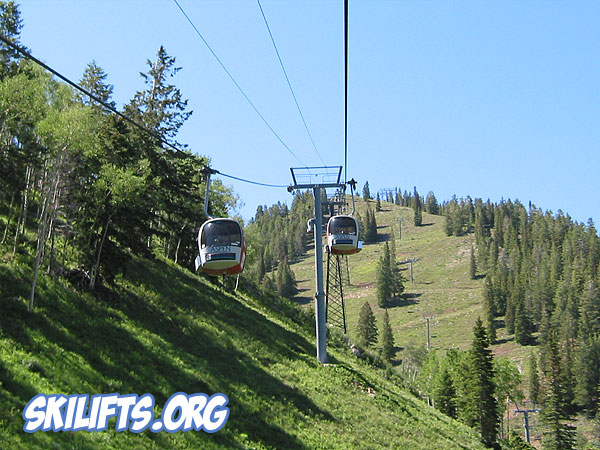

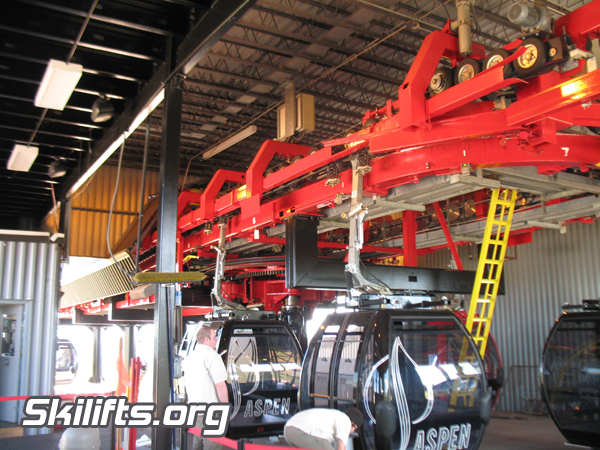

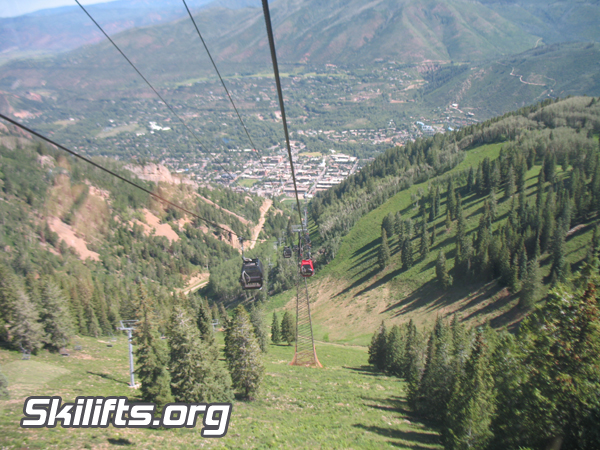

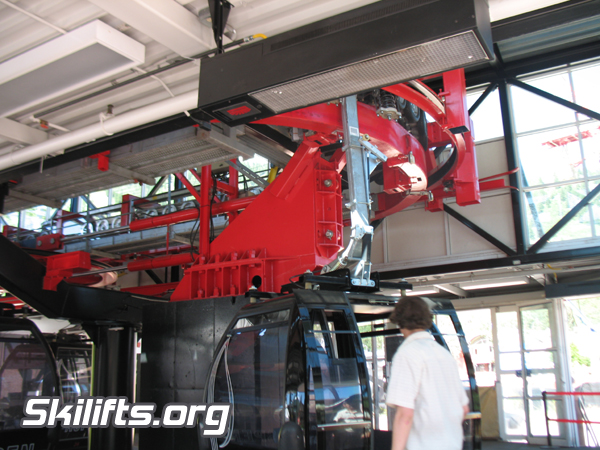

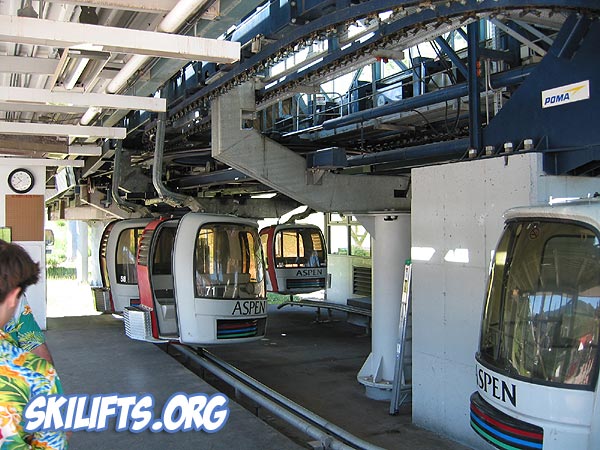

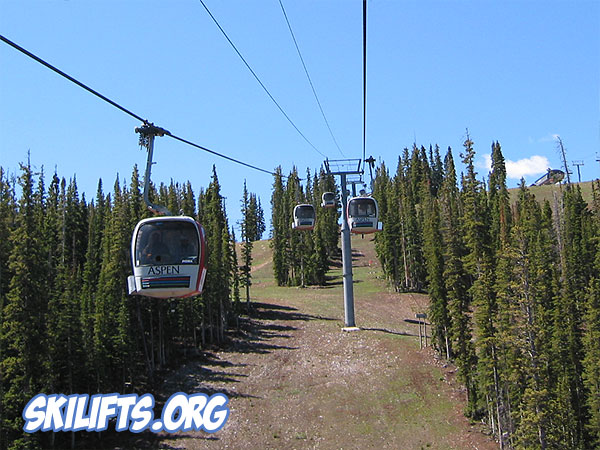

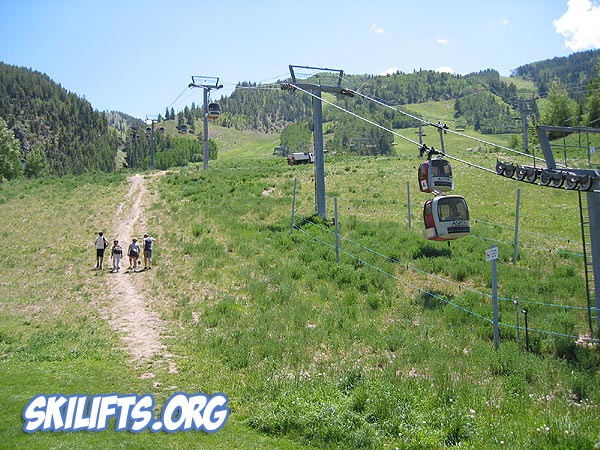

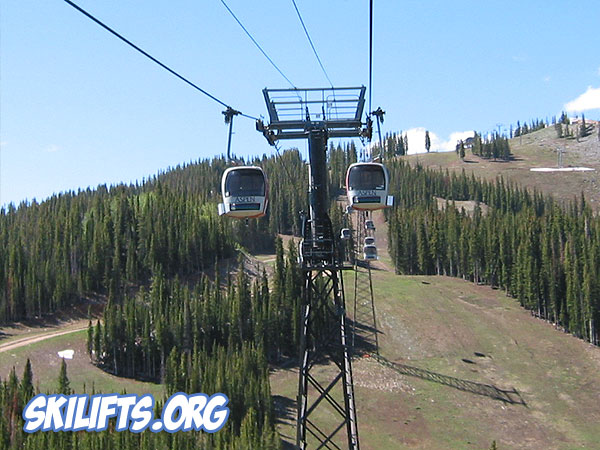

In the summer of 2006, the Silver Queen underwent a retrofit that included new carriers (CWA Omega III), upgraded contours, a new drive, and the terminal equipment was painted a new color. In the summer of 2005, the grips were rebuilt. The first eighteen pictures show the gondola with original cabins. The second fourteen show the gondola post retrofit. |
